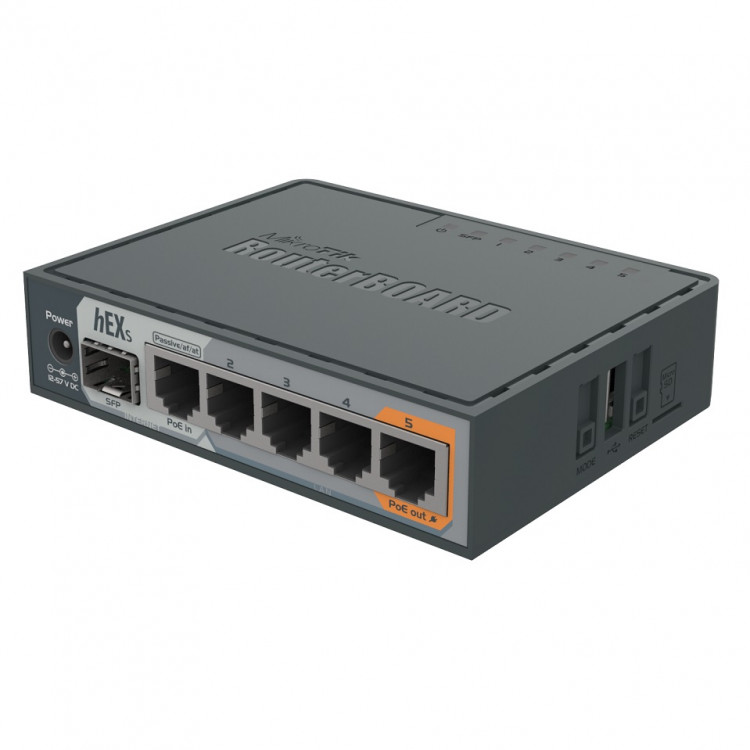

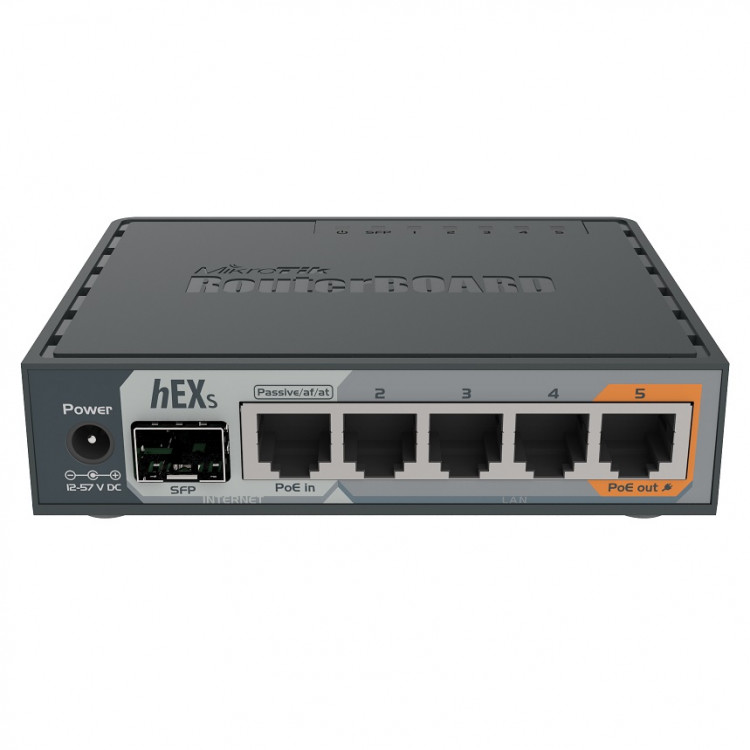

MikroTik hEX S
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package
hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
- Produkta kods
- RB760iGS
- Arhitektūra
- MMIPS
- CPU
- MT7621A
- CPU kodolu skaits
- 2
- CPU nominālā frekvence
- 880 MHz
- CPU pavedienu skaits
- 4
- Licences līmenis
- 4
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 256 MB
- Datu uzglabāšanas lielums
- 16 MB
- Datu uzglabāšanas veids
- FLASH
- Apkārtējās vides temperatūra testēšanas laikā
- -40°C to 70°C
- PoE ieeja
- 802.3af/at
- PoE ieeja(V)
- 12-57 V
- DC ieeju skaits
- 2 (DC jack, PoE-IN)
- DC ieejas spriegums (V)
- 12-57 V
- Maksimālais enerģijas patēriņš
- 24 W
- Maksimālais enerģijas patēriņš bez stiprinājumiem
- 6 W
- Maks. izeja uz portu (ieeja > 30 V)
- 500 mA
- Maks. porta izeja (ieeja < 30 V)
- 500 mA
- PoE izejas (porti)
- Ether5
- PoE izeja
- Passive PoE до 57V
- Maksimālā izejas jauda (A)
- 500 mA
- 10/100/1000 Ethernet porti
- 5
- SFP porti
- 1
- Atmiņas kartes veids
- microSD
- Atmiņas kartes
- 1
- USB portu skaits
- 1
- USB Power Reset
- Yes
- USB savienotāja tips
- USB type A
- Maks. USB ierīces (A)
- 1
- PCB temperatūras kontrole
- Yes
- Režīma poga
- Yes
- Sprieguma monitorings
- Yes
- Izmēri
- 113 x 89 x 28 mm
- Sertifikācija
- CE/RED, EAC, ROHS
