MikroTik netPower 15FR
An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!
With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

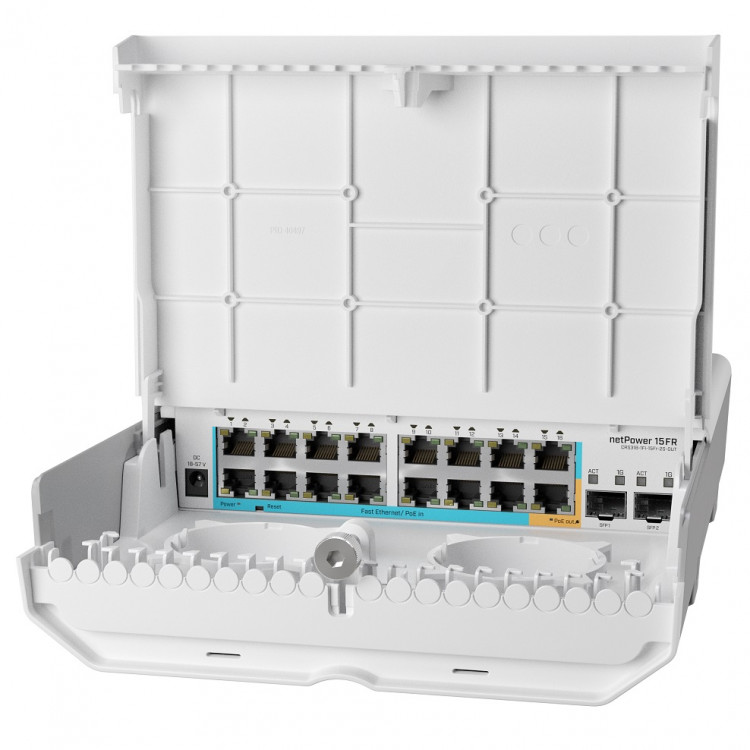

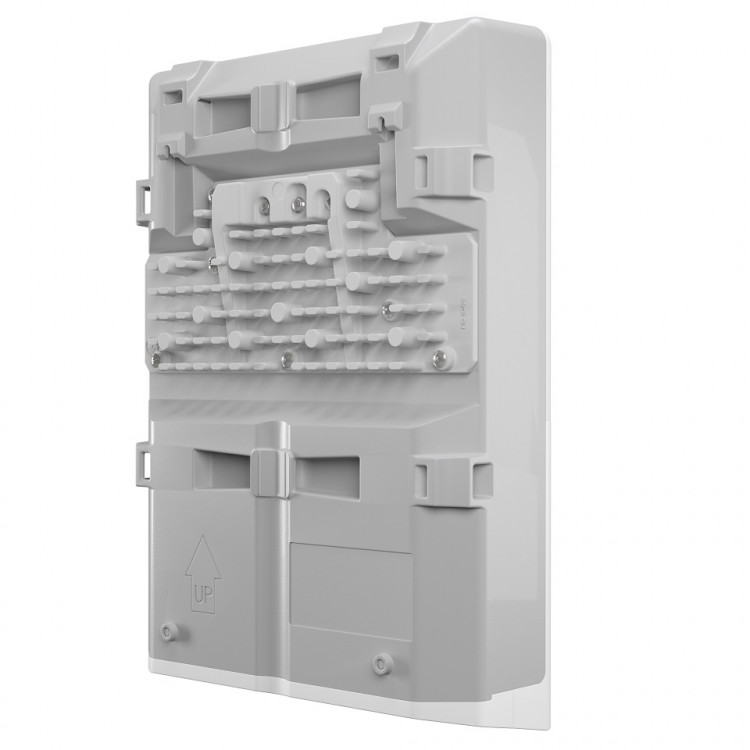

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!
netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.
- Produkta kods
- CRS318-1Fi-15Fr-2S-OUT
- Arhitektūra
- ARM 32bit
- CPU
- 98DX224S
- CPU kodolu skaits
- 1
- CPU nominālā frekvence
- 800 MHz
- Licences līmenis
- 5
- Operētājsistēma
- RouterOS / SwitchOS
- Atmiņas apjoms (RAM)
- 256 MB
- Datu uzglabāšanas lielums
- 16 MB
- Datu uzglabāšanas veids
- FLASH
- Apkārtējās vides temperatūra testēšanas laikā
- -40°C to 70°C
- MTBF
- Approximately 200'000 hours at 25C
- Switch mikroshēmas modelis
- 98DX224S
- PoE ieeja
- Passive PoE
- PoE ieeja(V)
- 18-57 V (recommended 36-57V)
- DC ieeju skaits
- 16 (PoE-IN, DC jack)
- DC ieejas spriegums (V)
- 18-57 V
- Maksimālais enerģijas patēriņš
- 29 W
- Maksimālais enerģijas patēriņš bez stiprinājumiem
- 10 W
- Ventilācijas veids
- Passive
- PoE izejas (porti)
- Ether15
- PoE izeja
- Passive PoE
- Maks. porta izeja (30–57 V ieeja)
- 0.5 A
- Maksimālā izejas jauda (A)
- 0.75 A
- Maks. porta izeja (ieeja < 30 V)
- 0.75 A
- 10/100 Ethernet porti
- 16
- SFP porti
- 2
- PCB temperatūras kontrole
- Yes
- Sprieguma monitorings
- Yes
- Izmēri
- 304 x 212 x 71 mm
- Sertifikācija
- CE, EAC, ROHS
- IP
- IP54
