MikroTik mANT30
✖ Not available
Preces Kods: MTAD-5G-30D3
Zīmols: MIKROTIK

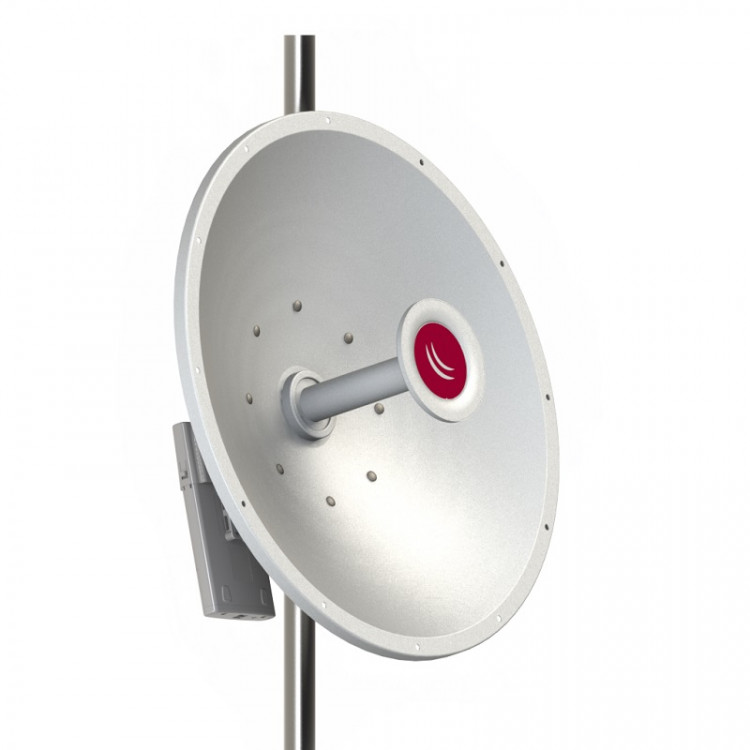

Parabolic dish antenna for 5GHz, 30dBi gain
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

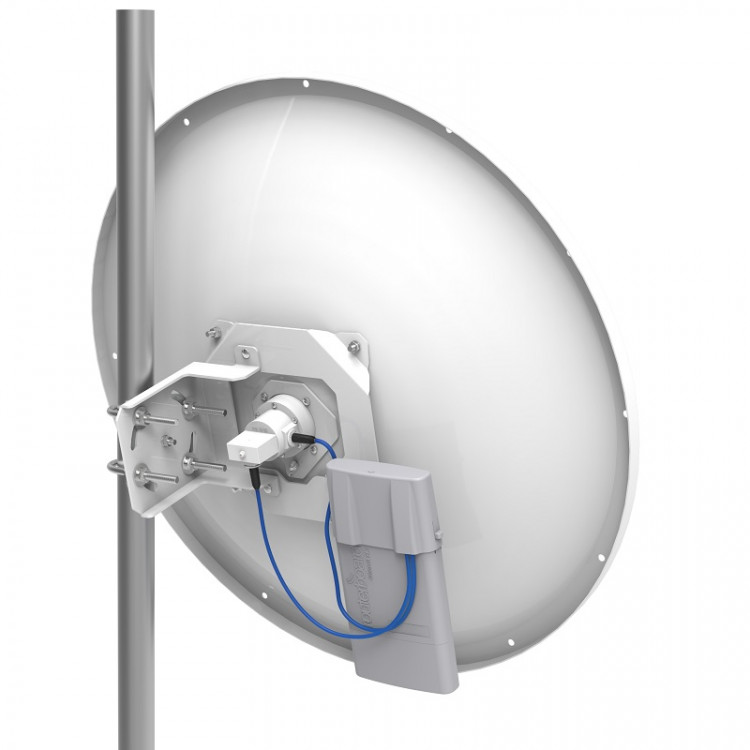

Note: Basebox wireless device pictured for illustrative purposes. It is not included
Produkta īpašības
- Produkta kods
- MTAD-5G-30D3
- Apkārtējās vides temperatūra testēšanas laikā
- -50°C to 80°C(-49°F to 158°F)
- Antenna beam width
- +/-2.5 deg
- Front to back ratio
- >30 dB
- VSWR
- ≤ 1.4 typ, ≤ 1.8 max
- Vēja slodze
- 181.4kg (400 lbs) at 125 mph, 50 kg at 40 m/s, 28 kg at 30 m/s
- Svars
- Package 7.5 kg (16.5 lbs)
- Connector
- 2x RP-SMA Female (outside thread)
- Standarti
- EN 302 326 DN1, DN2, DN3, DN5
- Izmēri
- 73x73x20cm (29x29x8in)
- Sertifikācija
- CE, ROHS
