MikroTik SXT SA5
14dBi Antenna with Built-in 802.11a/n 5GHz Antenna | 1x Gigabit LAN port with PoE input | 1 USB port | Router OS (license level 4)

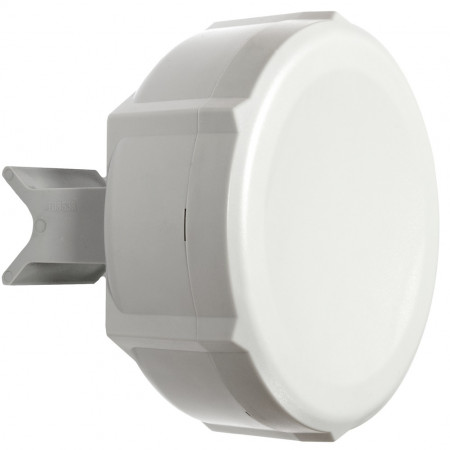

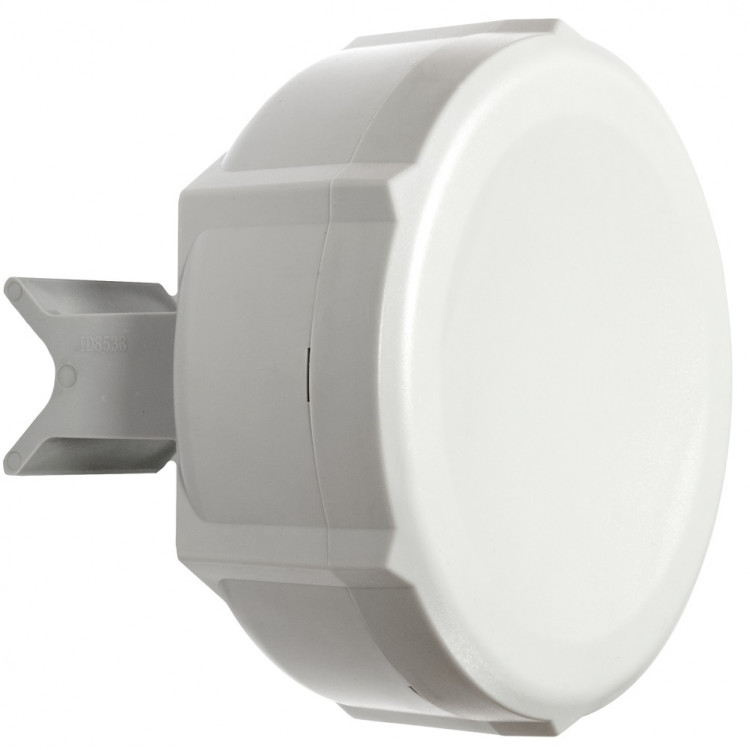

The SXTG-5HPnD-SAr2 is a low-cost, high-speed 5 GHz outdoor wireless access point. It has a 90-degree antenna providing wider coverage than our previous SXT units.
Featuring a ready-to-mount housing and built-in 14dBi antenna, the kit includes everything you need to install in minutes. The interior of the housing is coated with a special shield to improve performance in high-interference areas and the front-to-back ratio of the antenna.

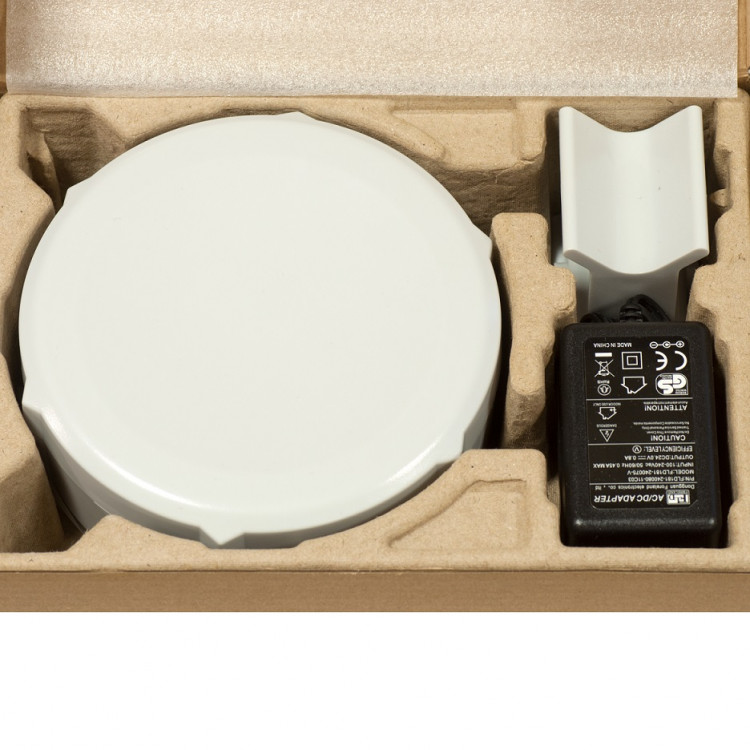

Box contains: SXT wireless device with built-in antenna, mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide.
RBSXTG-5HPnD-SAr2 (International) supports the frequency range 5150-5875 MHz (specific frequency range may be limited by country legislation).
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -95 |
| MCS7 | 26 | -73 |
- Produkta kods
- RBSXTG-5HPnD-SAr2
- Arhitektūra
- MIPSBE
- CPU
- AR9344
- CPU kodolu skaits
- 1
- CPU nominālā frekvence
- 600 MHz
- Licences līmenis
- 4
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 64 MB
- Datu uzglabāšanas lielums
- 128 MB
- Datu uzglabāšanas veids
- NAND
- Apkārtējās vides temperatūra testēšanas laikā
- -30°C to 70°C
- MTBF
- Approximately 100'000 hours at 25C
- PoE ieeja
- Passive PoE
- PoE ieeja(V)
- 6-30 V
- DC ieeju skaits
- 1 (PoE-IN)
- Maksimālais enerģijas patēriņš
- 11 W
- Ventilācijas veids
- Passive
- Wireless 5 GHz maks. datu pārraides ātrums
- 300 Mbit/s
- Wireless 5 GHz ķēžu skaits
- 2
- Wireless 5 GHz standarti
- 802.11a/n
- Antenas pastiprinājums dBi 5 GHz
- 14
- Wireless 5 GHz mikroshēmas modelis
- AR9344
- Paaudzes Wireless 5 GHz
- Wi-Fi 4
- 10/100/1000 Ethernet porti
- 1
- USB portu skaits
- 1
- USB Power Reset
- Yes
- USB savienotāja tips
- USB type A
- Maks. USB ierīces (A)
- 1
- PCB temperatūras kontrole
- Yes
- Sprieguma monitorings
- Yes
- Izmēri
- 140x140x56mm
- Sertifikācija
- CE, FCC, IC, EAC, ROHS
