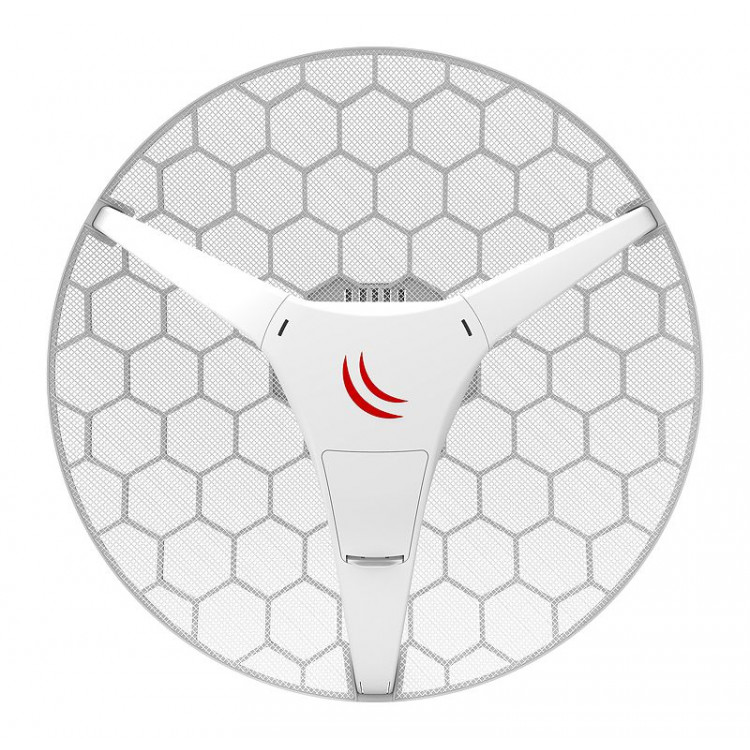

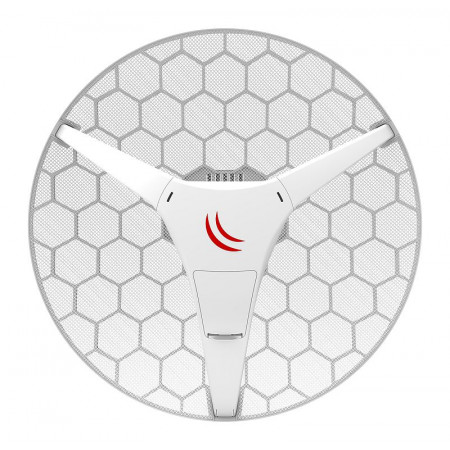

MikroTik LHG 5 3-pack
✓ In stock
Preces Kods: RBLHG-5nD-3
Zīmols: MIKROTIK
Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM, 3-pack
The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
Shipped as a kit of 3 units (RBLHG5kit) - 3 antennas in a single box.
We have two versions available.
- LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- LHG 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Produkta īpašības
- Produkta kods
- RBLHG-5nD
- CPU nominālā frekvence
- 600 MHz
- Atmiņas apjoms (RAM)
- 64 MB
- Datu uzglabāšanas veids
- 16 MB Flash
- Darba temperatūra
- -40 to 70° C
- Wireless
- 5 GHz 802.11a/n, dual-chain
- Wireless mikroshēmas modelis
- AR9344
- Darba frekvence
- 5150 - 5875 MHz
- Antenas pastiprinājums
- 24.5 +/- 0.5 dBi
- Antenna beam width
- 7°
- Cross polar
- 15 dBi
- Port-port izolācija
- 20 dB
- Front to back ratio
- 25 dB
- Atgriešanās zaudējums
- 10 dB
- PoE in
- Yes
- Vēja slodze
- 186N @ 205 km/h
- Mitrums darbības laikā
- 5 to 95% noncondensing
- Šoks un vibrācija
- ETSI300-019-1.4
- ETSI specifikācija
- EN 302 326 DN2
- PoE ieeja(V)
- 11 V - 30 V (passive PoE)
- Maksimālais enerģijas patēriņš
- 6 W
- 10/100 Ethernet porti
- м
- Izmēri
- Ø 391 x 222 mm; package 450 x 450 x 145 mm
- Ierīču skaits
- 3
