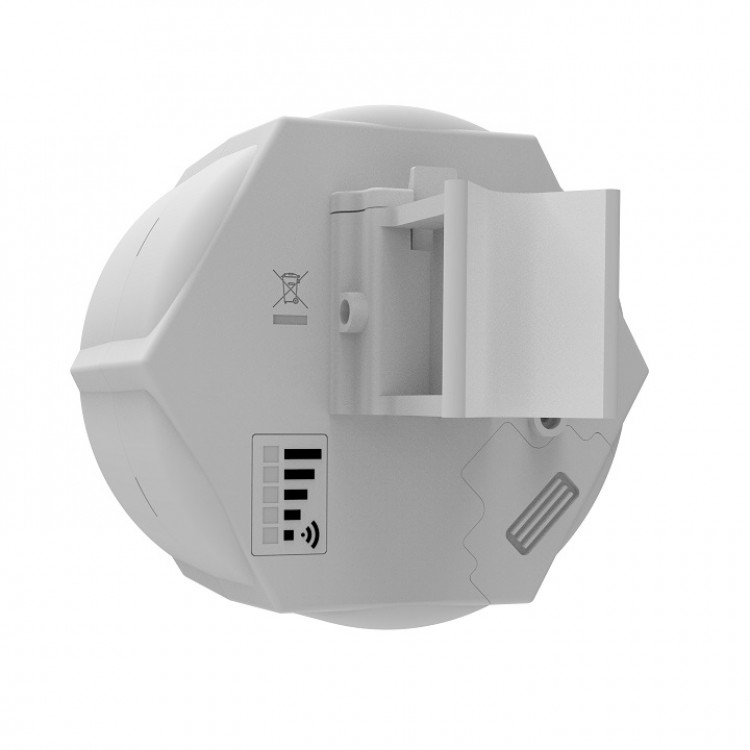

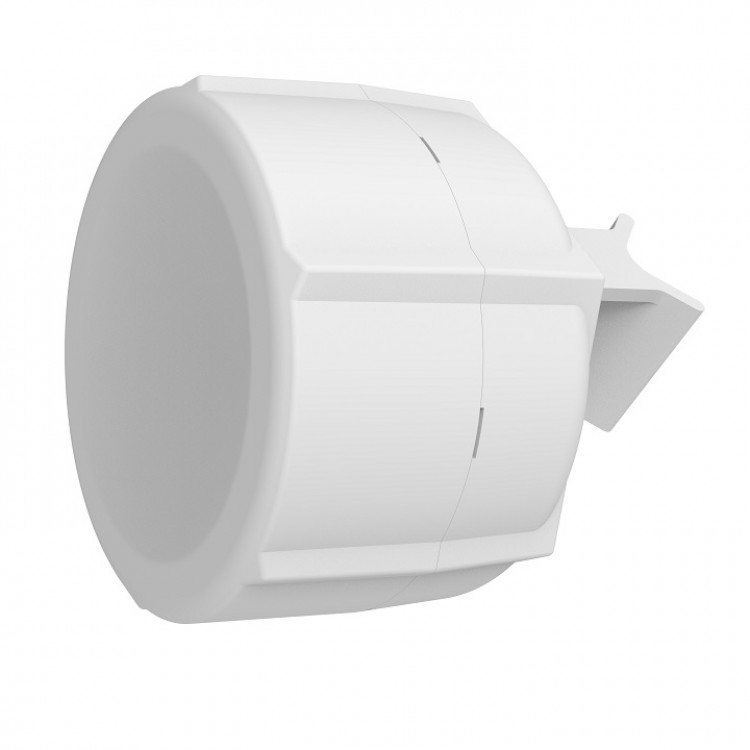

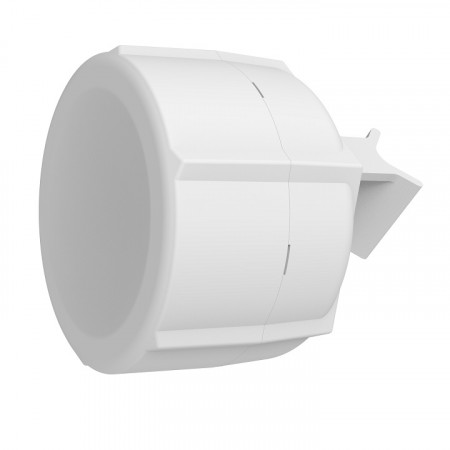

MikroTik SXT LTE6 kit
The evolution of affordable connectivity in remote areas
SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.
The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -95 |
| MCS7 | 26 | -73 |
- Produkta kods
- RBSXTR&R11e-LTE6
- Arhitektūra
- MIPSBE
- CPU
- QCA9531
- CPU kodolu skaits
- 1
- CPU nominālā frekvence
- 650 MHz
- Licences līmenis
- 3
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 64 MB
- Datu uzglabāšanas lielums
- 16 MB
- Datu uzglabāšanas veids
- FLASH
- Apkārtējās vides temperatūra testēšanas laikā
- -30°C to 60°C
- MTBF
- Approximately 200'000 hours at 25C
- PoE ieeja
- 802.3af/at
- PoE ieeja(V)
- 12-57 V
- DC ieeju skaits
- 1 (PoE-IN)
- Maksimālais enerģijas patēriņš
- 21 W
- Ventilācijas veids
- Passive
- 2G kategorija
- Class12
- 3G kategorija
- R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- LTE FDD diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD diapazoni
- 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
- 2G diapozoni
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- 10/100 Ethernet porti
- 2
- SIM card slotu skaits
- 2 Modem (Micro SIM)
- MiniPCI-e sloti
- 1
- Sertifikācija
- CE, EAC, ROHS
- IP
- IP54
