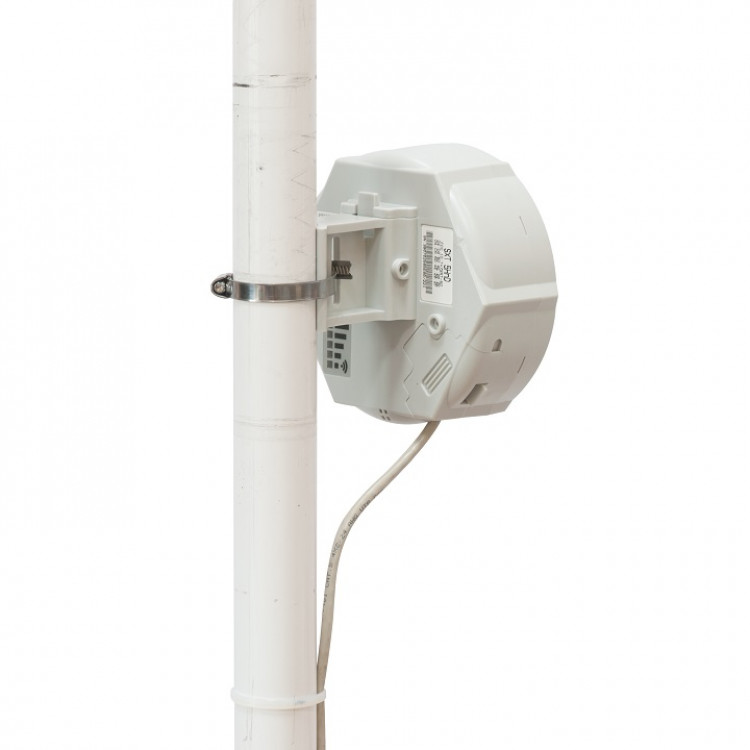

MikroTik SXT SA5 ac
802.11ac up to 540Mbit, high output, wide beamwidth sector antenna
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam - width sector antenna. Also support 802.11a/n standard, Nstreme and Nv2 protocols and are compatible with all legacy RouterBOARD devices. Both devices come with Gigabit Ethernet.
New products are backwards compatible - for example, you can replace your 5GHz 802.11a/n legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
- RBSXTG-5HPacD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBSXTG-5HPacD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -95 |
| MCS7 | 26 | -73 |
- Produkta kods
- RBSXTG-5HPacD-SA
- Arhitektūra
- MIPSBE
- CPU
- QCA9557
- CPU kodolu skaits
- 1
- CPU nominālā frekvence
- 720 MHz
- Licences līmenis
- 4
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 128 MB
- Datu uzglabāšanas lielums
- 128 MB
- Datu uzglabāšanas veids
- NAND
- Apkārtējās vides temperatūra testēšanas laikā
- -40°C to 70°C
- MTBF
- Approximately 200'000 hours at 25C
- PoE ieeja
- 802.3af/at
- PoE ieeja(V)
- 12-57 V
- DC ieeju skaits
- 1 (PoE-IN)
- Maksimālais enerģijas patēriņš
- 12 W
- Ventilācijas veids
- Passive
- Wireless 5 GHz maks. datu pārraides ātrums
- 867 Mbit/s
- Wireless 5 GHz ķēžu skaits
- 2
- Wireless 5 GHz standarti
- 802.11a/n/ac
- Antenas pastiprinājums dBi 5 GHz
- 14
- Wireless 5 GHz mikroshēmas modelis
- QCA9892
- Paaudzes Wireless 5 GHz
- Wi-Fi 5
- 10/100/1000 Ethernet porti
- 1
- USB portu skaits
- 1
- USB Power Reset
- Yes
- USB savienotāja tips
- USB type A
- Maks. USB ierīces (A)
- 1
- PCB temperatūras kontrole
- Yes
- Sprieguma monitorings
- Yes
- Sertifikācija
- CE, FCC, IC, EAC, ROHS
