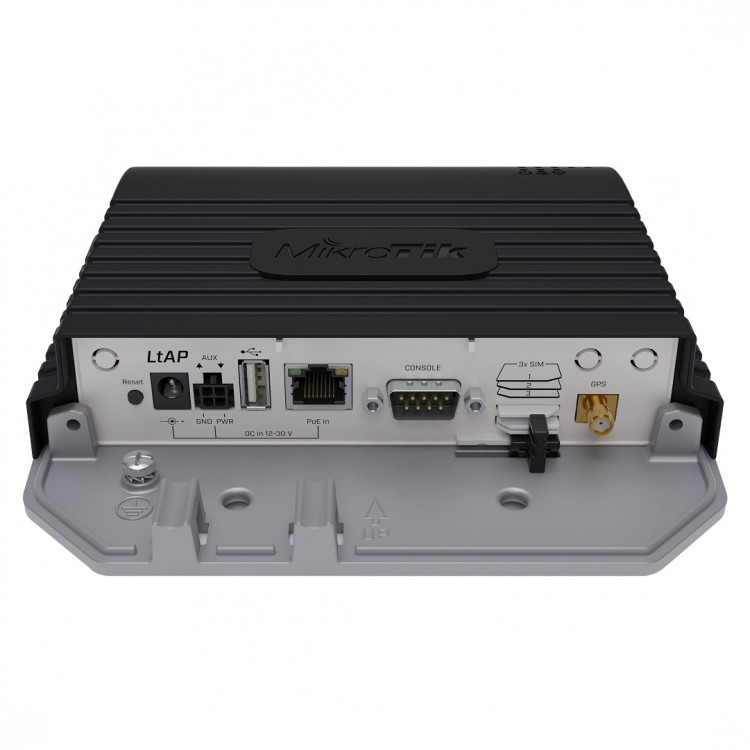

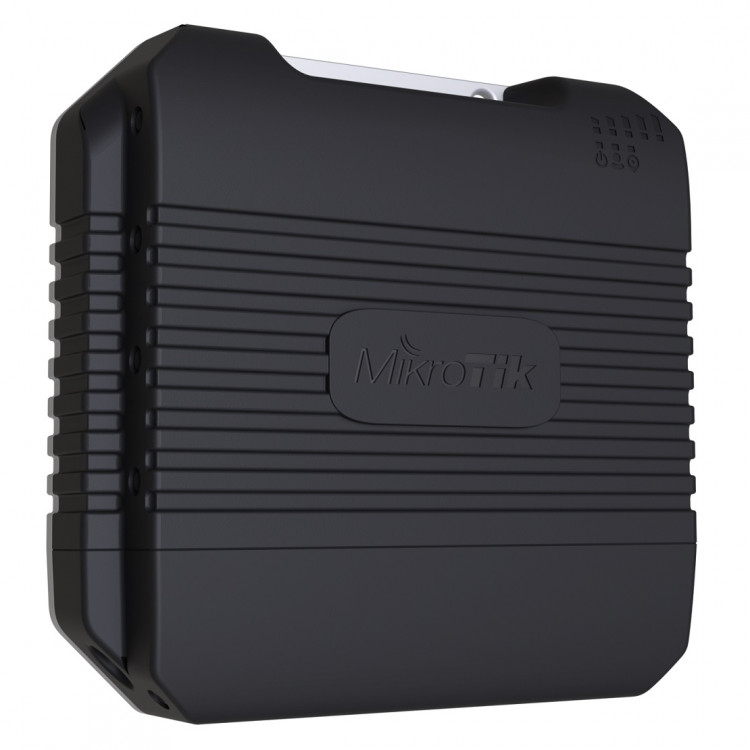

MikroTik LtAP LTE6 kit
An upgrade of the heavy-duty LTE access point with GPS support
LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!
• 2.4 GHz AP in a rugged case
• LTE installed in miniPCIe slot
• Second miniPCIe slot for expansions
• Three Mini SIM slots
• Gigabit Ethernet port
• Built-in GPS
• Many powering options (DC jack, POE-in, automotive)
• Serial port and full size USB for other devices
• Perfect for cars or outdoor mobile applications
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
Wireless specifications
- Produkta kods
- RBLtAP-2HnD&R11e-LTE6
- Arhitektūra
- MMIPS
- CPU
- MT7621A
- CPU kodolu skaits
- 2
- CPU nominālā frekvence
- 880 MHz
- CPU pavedienu skaits
- 4
- Licences līmenis
- 4
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 128 MB
- Datu uzglabāšanas lielums
- 16 MB
- Datu uzglabāšanas veids
- FLASH
- Apkārtējās vides temperatūra testēšanas laikā
- -30°C to 70°C
- Aparatūras paātrināšana IPsec
- Yes
- PoE ieeja
- Passive PoE
- PoE ieeja(V)
- 12-30 V
- DC ieeju skaits
- 3 (PoE-IN, DC jack, Automotive)
- DC ieejas spriegums (V)
- 12-30 V
- Automotive ieejas spriegums (V)
- 12-27 V
- Maksimālais enerģijas patēriņš
- 24 W
- Maksimālais enerģijas patēriņš bez stiprinājumiem
- 12 W
- Ventilācijas veids
- Passive
- 2G kategorija
- Class12
- 3G kategorija
- R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- LTE kategorija
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD diapazoni
- 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
- 2G diapozoni
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- Wireless 2,4 GHz maks. datu pārraides ātrums
- 300 Mbit/s
- Wireless 2,4 GHz ķēžu skaits
- 2
- Wireless 2,4 GHz standarti
- 802.11b/g/n
- Antenas pastiprinājums dBi 2,4 GHz
- 2.5
- Wireless 2,4 GHz mikroshēmas modelis
- AR9382
- Paaudzes Wireless 2,4 GHz
- Wi-Fi 4
- 10/100/1000 Ethernet porti
- 1
- SIM card slotu skaits
- 3 Modem (Mini SIM)
- MiniPCI-e sloti
- 2
- Seriālais ports
- RS232
- USB portu skaits
- 1
- USB Power Reset
- Yes
- USB savienotāja tips
- USB type A
- Maks. USB ierīces (A)
- 1
- PCB temperatūras kontrole
- Yes
- Sprieguma monitorings
- Yes
- Sertifikācija
- CE, FCC, IC, E-MARK, EAC, ROHS
- IP
- IP54
