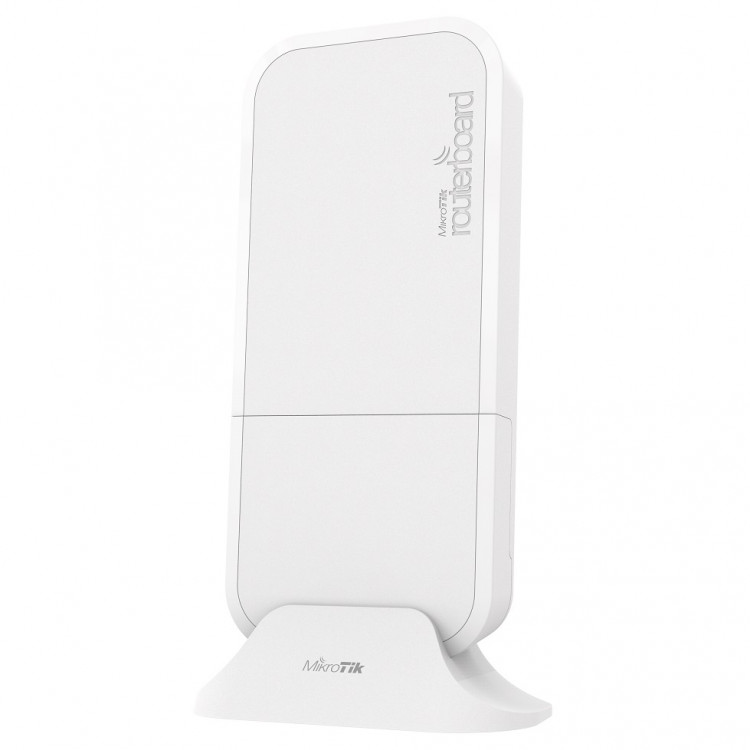

MikroTik wAP ac LTE6 kit
Powerful and versatile dual-band wireless access point with CAT6 LTE support
A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

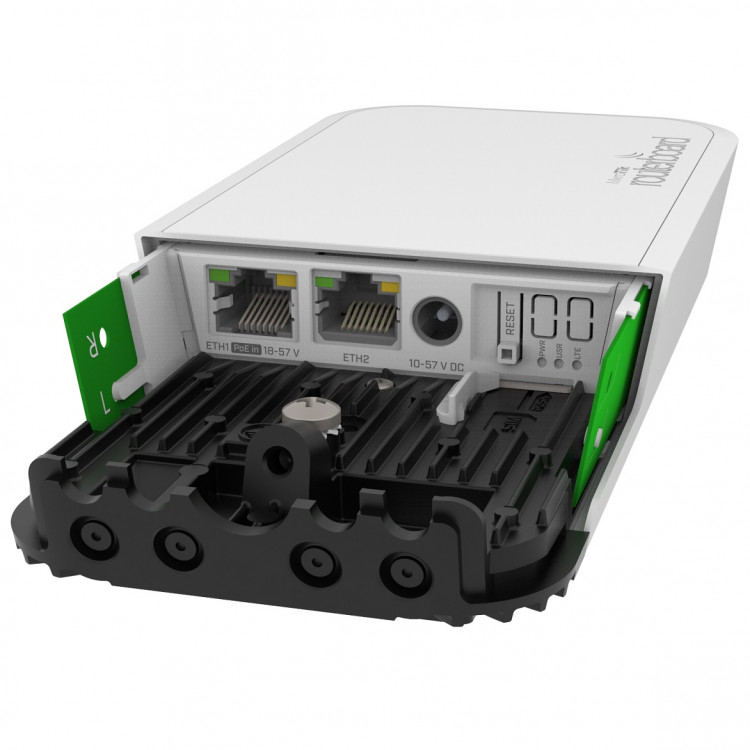

wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -100 |
| 11MBit/s | 22 | -94 |
| 6MBit/s | 23 | -95 |
| 54MBit/s | 19 | -78 |
| MCS0 | 23 | -95 |
| MCS7 | 18 | -73 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 24 | -95 |
| 54MBit/s | 20 | -78 |
| MCS0 | 24 | -95 |
| MCS7 | 19 | -73 |
| MCS9 | 17 | -68 |
- Produkta kods
- RBwAPGR-5HacD2HnD&R11e-LTE6
- Arhitektūra
- ARM 32bit
- CPU
- IPQ-4018
- CPU kodolu skaits
- 4
- CPU nominālā frekvence
- 716 MHz
- Licences līmenis
- 4
- Operētājsistēma
- RouterOS
- Atmiņas apjoms (RAM)
- 128 MB
- Datu uzglabāšanas lielums
- 16 MB
- Datu uzglabāšanas veids
- FLASH
- Apkārtējās vides temperatūra testēšanas laikā
- -30°C to 60°C
- Aparatūras paātrināšana IPsec
- Yes
- PoE ieeja
- 802.3af/at
- PoE ieeja(V)
- 18-57 V
- DC ieeju skaits
- 2 (DC jack, PoE-IN)
- DC ieejas spriegums (V)
- 10-57 V
- Maksimālais enerģijas patēriņš
- 16 W
- Maksimālais enerģijas patēriņš bez stiprinājumiem
- 10 W
- Ventilācijas veids
- Passive
- 2G kategorija
- Class12
- 3G kategorija
- R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- LTE kategorija
- 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD diapazoni
- 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
- 2G diapozoni
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G diapazoni
- 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- Wireless 2,4 GHz maks. datu pārraides ātrums
- 300 Mbit/s
- Wireless 2,4 GHz ķēžu skaits
- 2
- Wireless 2,4 GHz standarti
- 802.11b/g/n
- Antenas pastiprinājums dBi 2,4 GHz
- 2.5
- Wireless 2,4 GHz mikroshēmas modelis
- IPQ-4018
- Paaudzes Wireless 2,4 GHz
- Wi-Fi 4
- Wireless 5 GHz maks. datu pārraides ātrums
- 867 Mbit/s
- Wireless 5 GHz ķēžu skaits
- 2
- Wireless 5 GHz standarti
- 802.11a/n/ac
- Antenas pastiprinājums dBi 5 GHz
- 2.5
- Wireless 5 GHz mikroshēmas modelis
- IPQ-4018
- Paaudzes Wireless 5 GHz
- Wi-Fi 5
- 10/100/1000 Ethernet porti
- 2
- SIM card slotu skaits
- 1 Modem (Micro SIM)
- MiniPCI-e sloti
- 1
- PCB temperatūras kontrole
- Yes
- Sprieguma monitorings
- Yes
- Sertifikācija
- CE, FCC, IC, EAC, ROHS
- IP
- IP54
